Wellhead compressors, pump jacks, separators, and mobile drilling equipment sit outdoors in crude oil residue, diesel exhaust, and temperature swings that ruin standard labels within months. This guide covers what actually holds up on oil and gas field equipment and which asset tags are worth the spend in 2026.
- 3M heavy-duty metalized silver asset tags are the standard for wellsite equipment tagging in 2026 - buy them for anything outdoors.
- Skip semi-gloss white or direct-thermal-only labels on field equipment; they fade or lift within one season.
- QR code asset tags at $115 per set work best when a crew already logs maintenance digitally.
- Numbered 3M heavy-duty barcode labels save hours when tagging 200+ valves, pumps, or tanks in one pass.
Why this matters
A missing or unreadable asset tag on a $40,000 pump means someone re-verifies the equipment by hand, or worse, it goes untracked until an audit flags it. Oil and gas operations run lean crews across scattered sites, so the tag has to survive without a repeat visit.
McAuley Labels' asset tag catalog is built around materials that hold adhesion on oily, low-surface-energy steel - which is the actual failure point on most field tagging jobs, not the printing. Get the substrate and adhesive right and the barcode or QR code underneath does its job for years.
Who this is for
This guide is for facilities and maintenance leads at drilling contractors, midstream operators, and oilfield service companies who tag pump jacks, compressors, separators, tanks, and mobile equipment for inventory audits, maintenance scheduling, or regulatory recordkeeping. If your equipment lives in a climate-controlled shop and never sees weather, most of these criteria don't apply to you - go with a lighter-duty label instead.
What to look for in asset tags for oil and gas equipment
Adhesive rated for oily, dusty metal
Wellsite steel is rarely clean. Sandblasted, painted, or lightly oiled surfaces reject standard adhesives within weeks. 3M heavy-duty adhesive systems are formulated to bond to low-surface-energy substrates, which is why they show up on almost every asset tag rated for outdoor industrial use.
Temperature range
Compressor housings and pump jack components run hot; winter fields in North Dakota or the Permian Basin run well below freezing. A tag that only performs in a 40-90°F range fails on either end of that swing. Metalized polyester and 3M heavy-duty stock are built for that spread; paper-based labels are not.
Chemical and UV resistance
Crude oil, drilling mud, diesel, and hydraulic fluid degrade standard vinyl and adhesive over a single season outdoors. UV exposure alone fades unprotected ink within months. Metalized silver polyester resists both far better than paper or gloss film.
Print method - thermal transfer, not direct thermal
Direct thermal printing fades under UV and heat because the image is heat-activated dye with no protective overcoat. Thermal transfer with a resin ribbon burns the image into the label surface, which is what survives full sun on a tank farm through summer.
Barcode and QR scannability at distance
Maintenance crews scan tags from a few feet away, often in gloves, sometimes in low light. 300 DPI print resolution keeps barcode bars and QR modules crisp enough to scan on the first try instead of forcing a rescan or manual entry.
Sequential numbering for large fleets
A site with 300 valves, pumps, or fittings needs pre-numbered tags, not hand-written ones. Sequential numbering printed at the factory saves a crew hours compared to numbering tags on-site with a marker or handheld printer.
Top picks for oil and gas field equipment

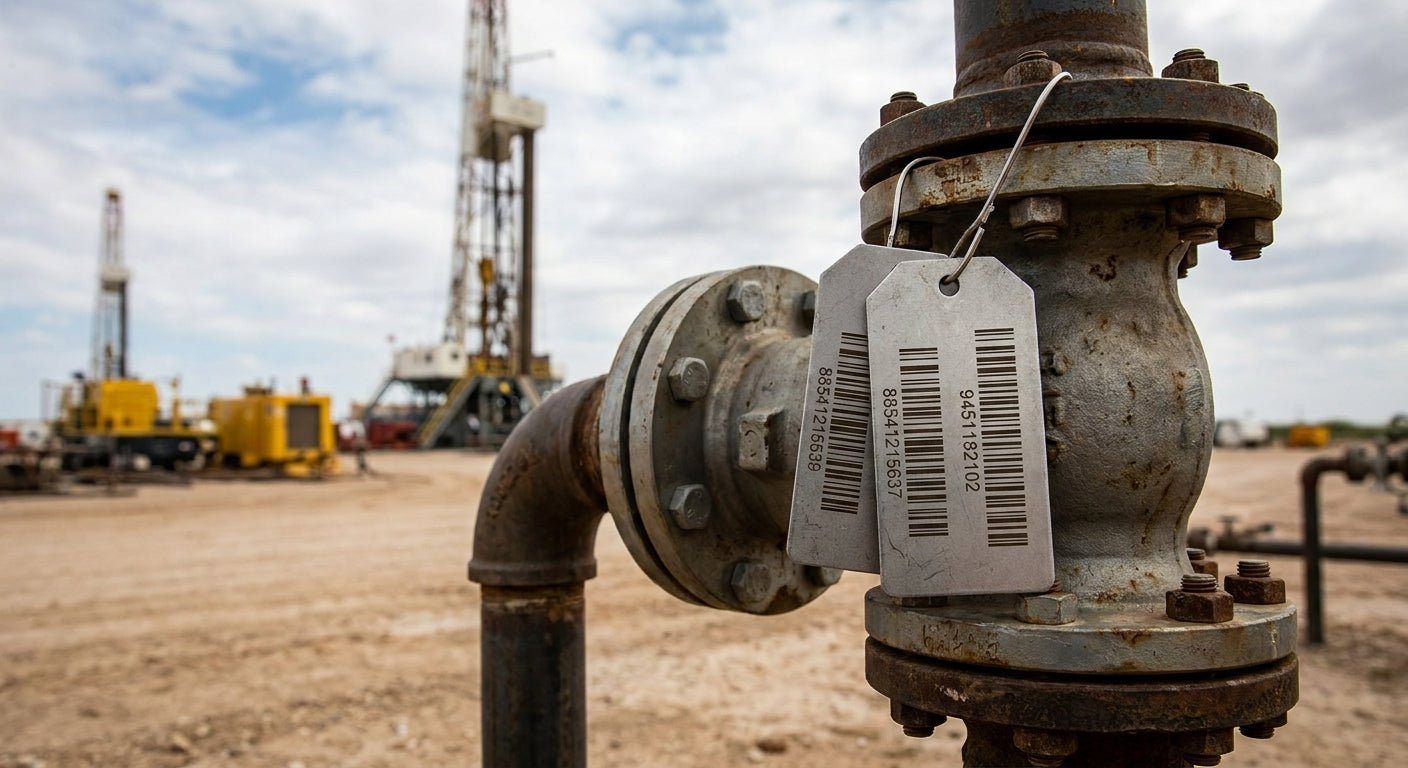

Heavy-Duty Silver Barcode Asset Tags - the safe pick. Metalized silver polyester with 3M heavy-duty adhesive, built for the exact combination of heat, UV, and oily steel a wellsite throws at a label. This is the default choice for tagging pump jacks, separators, and tank valves where the tag needs to outlast the maintenance cycle, not just the season. Buy.
Custom QR Code Asset Tags, 3M Heavy-Duty Metalized - the wildcard. Same rugged substrate, but the QR code lets a technician pull a maintenance record or service history on a phone instead of just an ID number - $115 for a set. Worth it if your crew already logs inspections digitally; skip it if maintenance is still paper-based, since the barcode version does the same tracking job for less setup. Buy for digital-maintenance fleets.
Custom Barcode Inventory Labels, Numbered, 3M Heavy-Duty - the fleet pick. Pre-numbered sequentially at $115 per set, this is built for sites tagging 100-plus pieces of equipment in one pass - valves, fittings, small pumps. Numbering at the factory means nobody stands in the field hand-writing IDs in 100°F heat. Buy for large equipment counts.
Metallized Silver ID Label - the yard-duty pick. Same silver polyester face but sized for general equipment ID rather than barcode tracking. Fine for indoor storage, staging yards, or equipment that doesn't sit at the wellhead year-round. Not the first choice for anything permanently exposed at a well pad. Consider for indoor or yard equipment only.
"If a label doesn't specify 3M heavy-duty adhesive, it doesn't belong on a wellhead."
“If a label doesn't specify 3M heavy-duty adhesive, it doesn't belong on a wellhead.”
What to avoid
- Semi-gloss white paper labels. They look clean on the shelf but delaminate in field conditions within one wet season - fine for a warehouse shelf, wrong for a tank farm.
- Direct thermal printing with no resin ribbon. The image fades from UV exposure within weeks outdoors, even though it prints crisp on day one. Anything permanently outdoors needs thermal transfer with a resin ribbon, not direct thermal.
- Generic printer labels bought for price, not adhesive spec. A tag that's cheaper per unit but falls off in six months costs more in re-tagging labor than the 3M heavy-duty version did up front.
Verdict comparison
| Pick | Material | Adhesive | Best for | Verdict |
|---|---|---|---|---|
| Heavy-Duty Silver Barcode Asset Tags | Metalized silver polyester | 3M heavy-duty | Wellhead, tank, pump jack tagging | Buy |
| Custom QR Code Asset Tags, Heavy-Duty | Metalized silver polyester | 3M heavy-duty | Fleets tracking service history digitally | Buy |
| Numbered Barcode Inventory Labels, 3M Heavy-Duty | Metalized silver polyester | 3M heavy-duty | Sites tagging 100+ units at once | Buy |
| Metallized Silver ID Label | Metalized silver polyester | Standard | Indoor storage, staging yards | Consider |
FAQ
What's the best asset tag material for oil and gas equipment?
Metalized silver polyester with 3M heavy-duty adhesive is the standard for oil and gas field equipment in 2026. It handles heat, UV, and oily steel surfaces better than paper or standard vinyl labels.
How long do metalized silver asset tags last outdoors on field equipment?
Metalized silver polyester tags with 3M heavy-duty adhesive are built for multi-year outdoor exposure, unlike paper or semi-gloss labels that degrade within a single season. Actual lifespan depends on surface prep and sun exposure at the specific site.
Are QR code asset tags better than barcode tags for oil and gas equipment?
QR code asset tags work better when a crew already logs maintenance digitally and needs to pull service history from a phone scan. Barcode tags handle basic ID tracking at a lower setup cost when digital record linking isn't needed.
Do asset tags need to survive crude oil and drilling mud exposure?
Yes, tags on wellsite equipment regularly contact crude oil, drilling mud, and diesel residue. Metalized polyester with heavy-duty adhesive resists chemical exposure far better than standard vinyl or paper stock.
What temperature range should oilfield asset tags handle?
Oilfield asset tags need to survive both hot compressor and engine housings and freezing winter field temperatures. Metalized polyester and 3M heavy-duty adhesive systems are built for that wide swing; paper-based labels are not.
Is direct thermal printing durable enough for outdoor equipment tags?
No, direct thermal print fades under UV and heat within weeks because the image has no protective layer. Thermal transfer printing with a resin ribbon holds up far longer in full sun.
How do you tag hundreds of pieces of field equipment efficiently?
Order sequentially numbered asset tags pre-printed at the factory instead of hand-numbering in the field. This saves hours on sites tagging 100 or more valves, pumps, or fittings in one pass.
One last thing
The adhesive spec matters more than the printed barcode itself. Two tags can look identical off the roll, but the one without 3M heavy-duty adhesive is the one you'll find peeling off a valve six months from now, forcing a re-tag on equipment that's already logged in the system. Check adhesive spec before print resolution every time.
