Miscalibrated thermal label printers waste labels, jam mid-roll, and print barcodes that scanners reject — all fixable in under five minutes once you know the exact sequence. This guide covers how to calibrate a thermal label printer step by step, including auto-calibration, manual gap sensing, and the settings to adjust when the printer still skips after calibration.

TL;DR: Calibration tells your thermal label printer where each label begins and ends. On most direct thermal and thermal transfer printers — including the Godex series sold by McAuley Labels — you run an auto-calibration sequence by holding the Feed button during power-on, then confirm the gap sensor reading in the printer settings. The whole process takes 2–4 minutes. If labels still skip or print off-center in 2026, a manual media type setting or darkness adjustment usually closes the gap.

Why This Matters

A thermal label printer that is not calibrated either prints content that bleeds across two labels or stops every few seconds waiting for a gap it cannot detect. In a warehouse or auto shop running 100+ labels per shift, that is a production stop. Calibration is not a one-time setup task — switch label stock, change roll size, or update firmware and the sensor baseline shifts. Recalibrate every time the media changes.

What You'll Need

Your thermal label printer (direct thermal or thermal transfer)
A loaded roll of the label stock you actually use in production — do not calibrate on a different stock
USB or serial connection to a host PC, OR access to the printer's front panel
Printer driver or configuration utility installed (GoLabel for Godex printers)
5–10 blank labels to feed through during calibration
The printer manual (model-specific button sequences vary)

The Steps

Step 1: Load the Correct Label Stock

Open the media compartment and thread the label roll so the label surface faces up through the platen. Slide the media guides snug against both edges — leave less than 1 mm of play. If the guides are loose, the roll drifts laterally during calibration and the sensor reads an inaccurate gap position. Confirm the label type matches what you intend to run: die-cut gap labels, black-mark labels, and continuous stock each use a different sensing mode, and selecting the wrong one before calibration is the single most common mistake in 2026.

Expected outcome: Roll seated flat, guides flush, no label curl over the printhead.

Common mistake: Using a partial roll left from the last job. Splices and inconsistent backing thickness skew the gap sensor reading.

Step 2: Select the Correct Sensing Mode

Before running any calibration sequence, set the media type in the printer's menu or in your configuration utility. The three options are:

Gap/notch sensing — for standard die-cut labels with clear liner between them
Black-mark sensing — for labels with a printed black registration mark on the back
Continuous — for receipt-style or liner-free stock with no gaps

On Godex printers, navigate to Menu > Calibration > Media Type and select the matching option. On printers without a display, consult the manual for the DIP switch or button combination that sets sensing mode. Skipping this step and running auto-calibration will cause the printer to sense garbage and feed 3–5 labels before stopping.

Common mistake: Leaving sensing mode on "Gap" when switching to black-mark stock.

Step 3: Run Auto-Calibration

With the printer powered off, hold the Feed button and power the printer on simultaneously. Hold the Feed button until the printer feeds 2–3 labels and stops — typically 5–8 seconds. This sequence forces the gap sensor to sample the backing-to-label transition and store the baseline reflectance value. The printer then prints a configuration label showing the measured gap length, darkness setting, and firmware version.

On printers with a front panel display, the menu path Calibration > Auto Calibrate achieves the same result without powering down.

Expected outcome: 2–3 labels advance cleanly, printer stops, status light goes solid green.

Common mistake: Releasing the Feed button too early. If you let go before the labels feed, the calibration sequence aborts and the printer boots normally without updating the sensor baseline.

Step 4: Verify the Configuration Print

Read the configuration label the printer outputs after auto-calibration. Confirm four values:

Label length — matches the physical label height (e.g., 2.00 in for a 2-inch label)
Gap length — typically 0.12 in to 0.16 in for standard die-cut stock
Media sensor type — should match what you set in Step 2
Print darkness — a starting value of 8–12 is normal for direct thermal; thermal transfer typically runs 10–14 depending on ribbon type

If label length reads significantly off — say 1.75 in when your stock is 2.00 in — the sensor did not detect the gap cleanly. Repeat Step 3, or proceed to manual calibration in Step 5.

Common mistake: Ignoring the config print. It is the only objective record of what the sensor actually measured.

Step 5: Set Label Length Manually if Auto-Calibration Fails

Open the configuration utility (GoLabel on Godex printers) and navigate to Printer Setup > Label Size. Enter the exact label height and gap length from the label manufacturer's spec sheet — not from the config print. Send the settings to the printer. This overrides the sensor-measured value with a known-good figure.

Manual entry is required when:

Labels have a very short gap (under 0.08 in)
The backing is opaque or colored, reducing sensor contrast
You are using pre-printed stock where the reverse side interferes with gap detection

Expected outcome: Printer accepts the dimensions, status light stays solid.

Common mistake: Entering label height including the gap. Gap length is a separate field — double-counting it shifts every print by exactly one gap length.

Step 6: Run a Test Print and Check Alignment

Print 5 consecutive labels at normal production speed. Check three things:

Top-of-form position: Content starts at the same Y position on every label
No bleed: Content does not run past the bottom edge onto the liner or the next label
Barcode scan rate: Scan all 5 barcodes. All 5 must decode on the first pass

If the print starts 2–3 mm too low, increase the Top-of-Form Offset in the printer settings by +2 mm and retest. If the print is light, raise darkness by 1 unit at a time — darkness changes of more than 2 units at once can cause printhead wear on high-volume units.

Common mistake: Judging alignment from a single label. Sensor variance shows up across a run, not on label one.

Step 7: Save the Configuration Profile

Once test prints pass, save the settings as a named profile in your configuration utility. Label the profile with the stock name, label size, and date — for example, "2x1 DT white gap — 2026-06". When you return to this stock after running a different roll, you reload the profile instead of recalibrating from scratch. This cuts changeover time from 5 minutes to under 30 seconds on the production floor.

Expected outcome: Profile saved, accessible from the utility's profile list on future sessions.

Troubleshooting

Labels feed continuously without stopping. The gap sensor is not detecting transitions. Check that sensing mode matches your stock. Clean the sensor with a dry cotton swab — paper dust accumulates on the optical sensor window and reduces contrast. If the sensor reads gap length as 0.00 in on the config print, the sensor window is likely fouled.

Print is offset the same distance on every label. This is a top-of-form offset issue, not a calibration failure. Adjust the offset value in printer settings in 1 mm increments until alignment centers. Do not re-run auto-calibration — it will not fix an offset problem.

Printer skips every other label. Label length in the printer settings is set to exactly half the actual label pitch. This happens when the operator enters label height without including the gap, and the printer interprets every gap as an end-of-label. Re-enter label height as the full pitch (label height + gap length) if your printer's firmware defines length that way, or enter them separately if it has two fields.

Barcodes scan fine but print is faint. Darkness is set too low for the label stock. Raise darkness by 2 units and run another test strip. Direct thermal paper has a minimum activation energy — if darkness is below threshold, the image forms but lacks contrast. On thermal transfer, check ribbon compatibility: a wax ribbon on synthetic stock will look faint no matter how high the darkness setting.

Calibration works but shifts after 50 labels. The media guide is loose and the roll is drifting. Stop the run, reseat the roll, close the guides firmly, and run a 10-label verification print. Media drift is a mechanical issue — calibration cannot compensate for it.

Printer reports "media out" with a full roll loaded. The gap sensor threshold stored during calibration does not match the current stock reflectance. This happens when a roll from a different supplier uses a different backing opacity. Run auto-calibration again with the new stock loaded.

Tools and Resources

GoLabel configuration utility (free download from Godex) — required for manual label size entry and profile saving on Godex printers
Lint-free cotton swabs and 70% isopropyl alcohol — for sensor cleaning; do not use water
Label manufacturer's spec sheet — gap length and label pitch are listed here; do not guess
Direct thermal printer labels — no ribbon needed — McAuley Labels' direct thermal stock, spec sheet available on the product page
Godex label printer troubleshooting guide — covers error codes, sensor cleaning intervals, and firmware update steps for the full Godex line

FAQ

How do I calibrate a thermal label printer without a computer? Hold the Feed button while powering on the printer. The printer feeds 2–3 labels, samples the gap, and stores the baseline automatically. No PC is required for auto-calibration on most thermal label printers, including the Godex RT and DT series.

How often should I calibrate my thermal label printer? Calibrate every time you change label stock — different rolls have different gap lengths and backing opacity. Also recalibrate after a firmware update or if the printer has been moved and the media guides were disturbed.

Why does my thermal label printer keep skipping labels? The three most common causes in 2026 are: sensing mode set to the wrong type, a fouled gap sensor, or label length entered incorrectly in printer settings. Start by cleaning the sensor, then verify the label length value in your configuration utility.

What is the difference between gap sensing and black-mark sensing? Gap sensing uses an optical sensor to detect the transparent liner between die-cut labels. Black-mark sensing detects a printed black rectangle on the back of the label stock. You must match the sensing mode to your specific label stock before calibrating — mixing them up is the most common calibration error.

Can I calibrate a thermal transfer printer the same way as a direct thermal printer? Yes. The calibration sequence is the same. The added step for thermal transfer is confirming that the ribbon is loaded and the ribbon sensor reads correctly — a missing or exhausted ribbon will trigger a separate error before calibration runs.

How do I know if my thermal label printer needs recalibration? Four clear signs: labels printing off-center by a consistent offset, the printer feeding 2+ blank labels before each print, barcodes partially printing at the label edge, or a "gap error" or "media error" status light. Any of these means recalibrate before continuing production.

What darkness setting should I use on a thermal label printer? Start at 8 for direct thermal paper stock and 10–12 for thermal transfer with wax ribbon. Increase in single-unit increments until barcodes scan cleanly on the first pass. Running darkness above 15 on direct thermal shortens printhead life.

Does calibration fix a faded print on a thermal label printer? No. Faded print is a darkness or printhead issue. Calibration only corrects label positioning and gap detection. If print quality is faded after calibration, raise the darkness setting by 2 units or clean the printhead with an IPA wipe.

One Last Thing

Most thermal label printer calibration failures in 2026 trace back to one overlooked detail: the sensor window. A 30-second cleaning with a dry cotton swab — before running auto-calibration — eliminates the majority of "gap not detected" and "media out" errors that operators spend 20–30 minutes chasing through menus. Clean the sensor first, then calibrate.

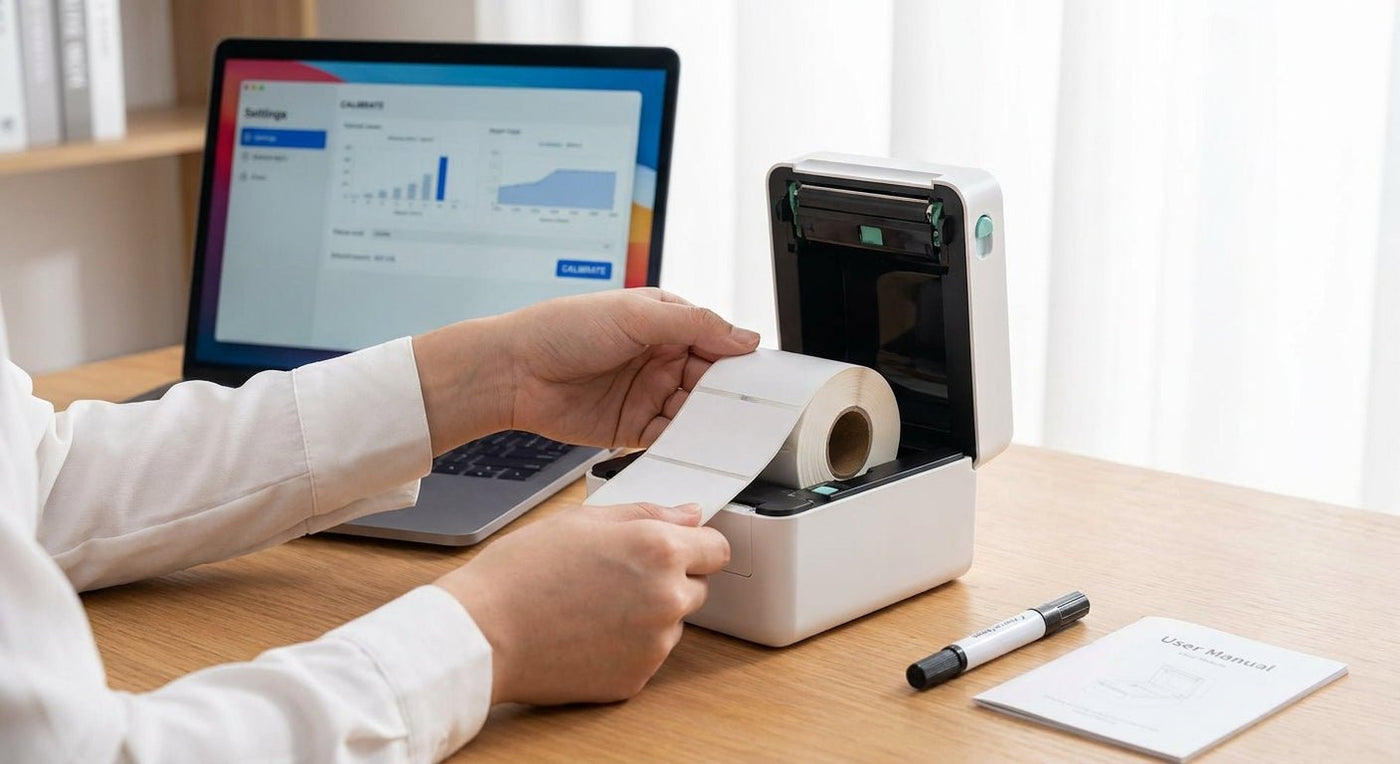

How to Calibrate a Thermal Label Printer (2026)
